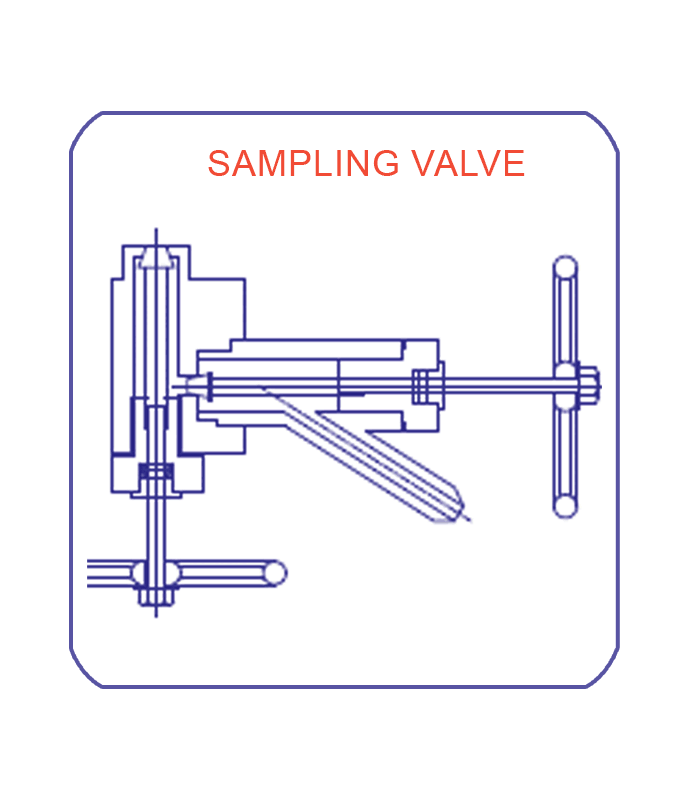

Sampling Valve
| PARTS | MATERIALS |
| BODY | AISI 304/ 316 |
| COVER | AISI 304 / 316 |
| GLAND | AISI 304 / 316 |
| GLAND PACKING | TEFLON |
| BODY SEAL | TEFLON |
| SPINDLE | AISI 304/ 316 |
| HAND WHEEL | BAKELITE |

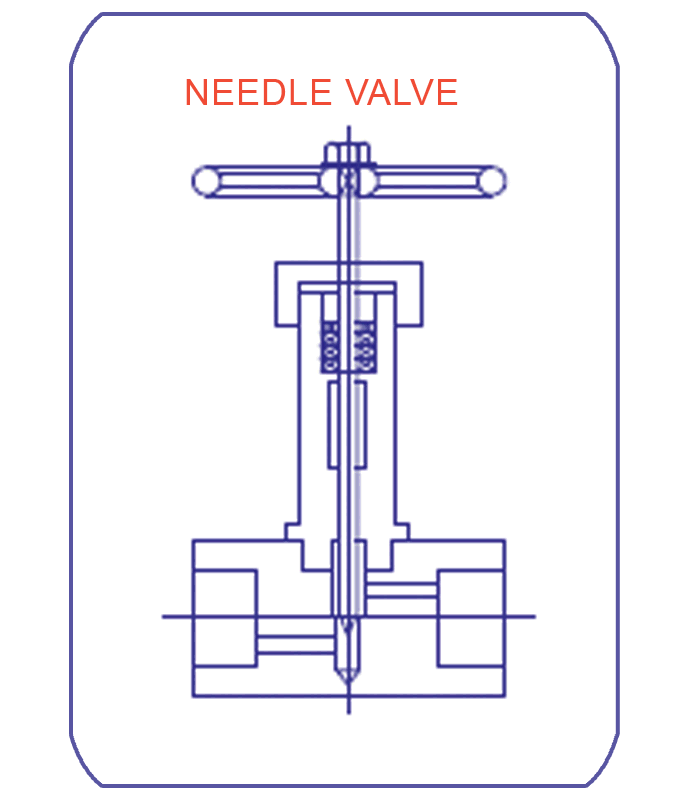

Needle Valve
| PARTS | MATERIALS |
| Body | M.S. / AISI SS 304 / SS 316 (INVESTMENT CASTING) |
| BONNET | M.S. / AISI SS 304 i SS 316 |
| SPINDLE | AISI SS 304 / SS 316 |
| GLAND | AISI SS 304 / SS 316 |
| GlAND NUT | AISI SS 304 / SS 316 |
| GASKET | TEFLON |
| GLAND PACKING | TEFLON |
| HAND WHEEL | BAKELITE |
Class 150 Flanges (All Dimensions in mm)
Nominal Size |
Bore |
Face To Face |
Flange O.D. |
Flange Thick |
Raised Face |
PCD |
No. of |
Dia of |
||
CHECK VALVE GLOBE VALVE |
GATE VALVE |
STRAINER |
||||||||
8 NB |
8 |
108 |
108 |
--- |
88.9 |
11.1 |
34.9 |
60.3 |
4 |
15.9 |
15 NB |
12.7 |
108 |
108 |
108 |
88.9 |
11.1 |
34.9 |
60.3 |
4 |
15.9 |
20 NB |
19 |
117.5 |
117.5 |
117.5 |
98.4 |
11.1 |
42.9 |
69.9 |
4 |
15.9 |
25 NB |
25 |
127 |
127 |
127 |
107.9 |
11.1 |
50.8 |
79.4 |
4 |
15.9 |
32 NB |
32 |
140 |
140 |
140 |
117.5 |
12.7 |
63.5 |
88.9 |
4 |
15.9 |
40 NB |
38 |
165.1 |
165.1 |
165 |
127 |
14.3 |
73 |
98.4 |
4 |
15.9 |
50 NB |
50 |
203.2 |
177.8 |
230 |
152.4 |
15.9 |
92.1 |
120.6 |
4 |
19 |
65 NB |
63 |
215.9 |
190.5 |
290 |
177.8 |
19 |
104.8 |
139.7 |
4 |
19 |
80 NB |
76 |
241.3 |
203.2 |
310 |
190.5 |
19 |
127 |
152.4 |
4 |
19 |
100 NB |
101 |
292.1 |
228.6 |
350 |
228.6 |
23.8 |
157.2 |
190.5 |
8 |
19 |
125 NB |
127 |
355.6 |
254 |
--- |
254 |
23.8 |
185.7 |
215.9 |
8 |
22.2 |
150 NB |
152 |
406.4 |
266.7 |
486 |
279.4 |
25.4 |
215.9 |
241.3 |
8 |
22.2 |
200 NB |
203 |
495.3 |
292.1 |
660 |
342.9 |
28.6 |
269.9 |
298.4 |
8 |
22.2 |
250 NB |
254 |
622.3 |
330.2 |
685 |
406.4 |
30.2 |
323.8 |
361.9 |
12 |
25.4 |
300 NB |
304.8 |
698.5 |
355.6 |
--- |
482.6 |
31.7 |
381 |
431.8 |
12 |
25.4 |
Class 300 Flange (All Dimensions are in mm)
Nominal Size |
Bore |
Face To Face |
Flange O.D. |
Flange Thick |
Raised Face |
PCD |
No. of |
Dia of |
||
CHECK VALVE GLOBE VALVE |
GATE VALVE BALL VALVE |
STRAINER |
||||||||
15 NB |
12.7 |
152 |
140 |
108 |
95.2 |
14.2 |
38.1 |
66.5 |
4 |
15.7 |
20 NB |
19 |
178 |
152 |
117.5 |
117.3 |
15.7 |
47.7 |
82.5 |
4 |
19 |
25 NB |
25 |
203 |
165 |
127 |
123.9 |
17.5 |
53.8 |
88.9 |
4 |
19 |
32 NB |
32 |
216 |
178 |
140 |
133.3 |
19 |
63.5 |
98.5 |
4 |
19 |
40 NB |
38 |
229 |
190 |
230 |
155.4 |
20.5 |
69.8 |
114.3 |
4 |
22.3 |
50 NB |
50 |
267 |
216 |
245 |
165.1 |
22.3 |
84.1 |
127 |
8 |
19 |
65 NB |
63 |
292 |
241 |
290 |
190.5 |
25.4 |
100 |
149.3 |
8 |
22.3 |
80 NB |
76 |
318 |
283 |
310 |
209.5 |
28.4 |
117.3 |
168.1 |
8 |
22.3 |
100 NB |
101 |
356 |
305 |
350 |
254 |
31.7 |
146.1 |
200.1 |
8 |
22.3 |
150 NB |
152 |
444 |
403 |
545 |
317.5 |
36.5 |
206.2 |
269.7 |
12 |
22.3 |
200 NB |
203 |
559 |
502 |
660 |
381 |
41.1 |
260.3 |
330 |
12 |
25.4 |
ASME CLASS |
Hydrostatic Test Pressure in Kg/cm2 (psig) |
Pneumatic pressure closure test pressure in kg/cm2 (psig) |
|
Seat |
Body |
||
150 |
32 (315) |
22 (315) |
7 (100) |
300 |
57 (815) |
57 (815) |
7 (100) |
600 |
115 (1630) |
115 (1630) |
7 (100) |
900 |
172 (2445) |
172 (2445) |
7 (100) |
1500 |
287 (4080) |
287 (4080) |
7 (100) |
2500 |
477 (6790) |
477 (6790) |
7 (100) |
