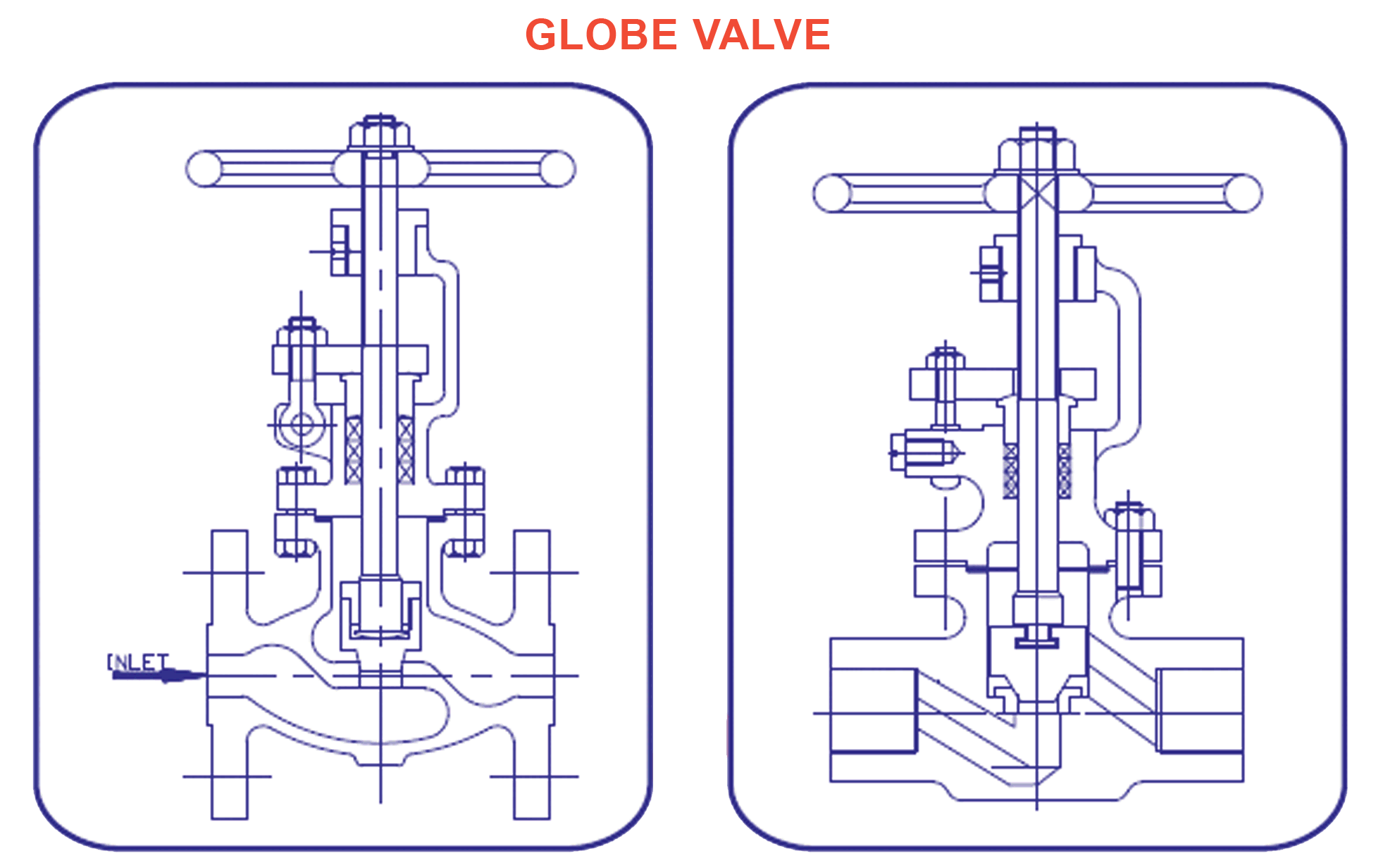

Globe Valve
Globe valves are of 'OS' & 'Y' type design with bolted bonnet.
We also offer Gate Valves for:
- Hot oil application for temperatures up to 600 Degree Centigrade
- Jacketed design
- Manual and motorized operation
- Special Alloys
- Robust body design
- High flow capacity for better flow-rate to line size ratio
- Pressure sealed bonnet option
- Variety of cage trims designs to suit wide range of industrial applications
- Wide range of noise reduction and cavitation control options
- Quick change self aligning trim / seat design
- Top entry trim for easy inline assessment and maintenance
- Long service life and Operational reliability
- Interchangeable internal parts
HYDRAULIC TEST PRESSURE |
||
BODY |
30 Kg/cm2 (g) |
|
SEAT |
21 Kg/cm2 (g) |
|
AIR TEST |
||
SEAT |
7 Kg/cm2 (g) |
|
| PARTS | MATERIALS |
| Body | ASTM A216 GR. WCB (INVESTMENT CASTING) |
| BONNET | ASTM A216 GR. WCB |
| DISC | CAST STEEL WITH 13% CR. FACED /AISI 410 |
| CHECK NUT | AISI 410 |
| SPINDLE | A1SI 410 |
| GLAND | A1SI 410 |
| BACK SEAT BUSH | AISI 410 |
| SEAT RING | CAST SEEL WITH 13% CR. FACED/ AISI 410 |
| YOKE BUSH | GUN METAL |
| GLAND PACKING | TEFLON IMPREGNATED ASBESTOS |
| GASKET | CAF |
| BONNET STUD & NUT | ASTM A 193 GR. B7/ A194 GR. 2H / AISI 304 |
| EYE BOLT & NUT | FORGED MILD STEEL |
| HAND WHEEL | CAST IRON |
| HAND WHEEL & NUT | MILD STEEL |
APPLICABLE STANDARDS |
FACE TO FACE – ANSI 16.10 |
MFG. STD – |
TESTING STANDARDS -API 598 |
