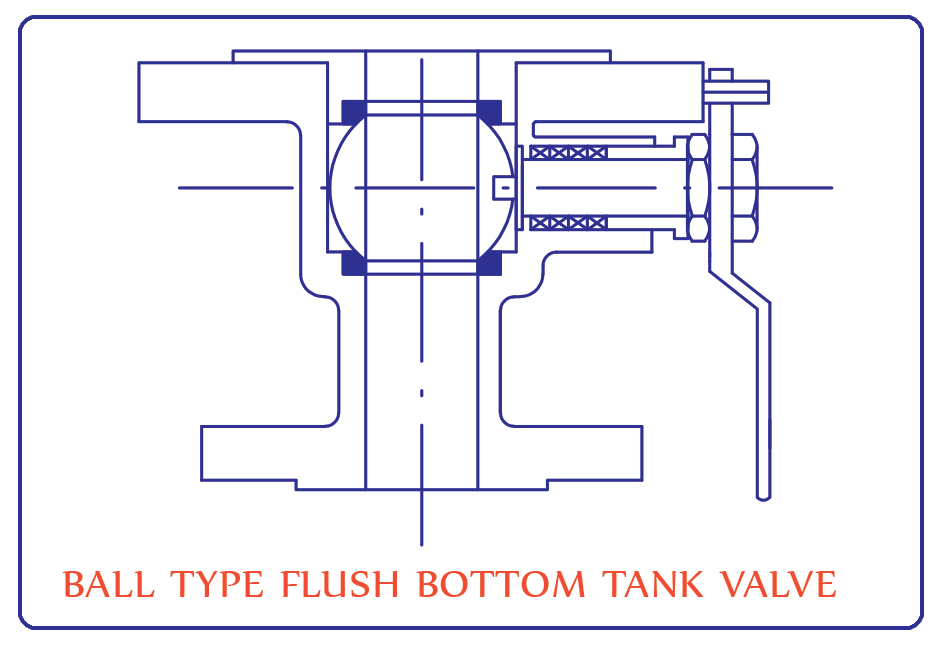

Ball Type Flush Bottom Tank Valve

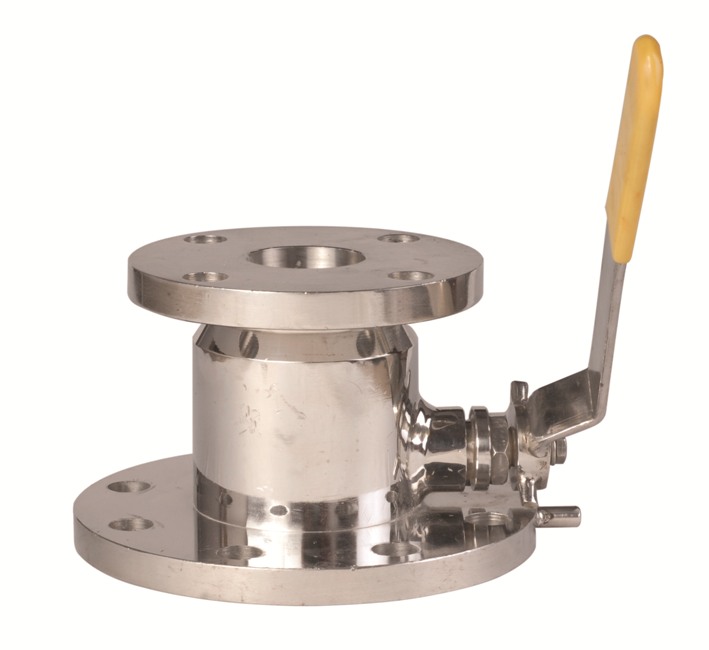

Ball type flush bottom tank valve (lever operated and gear operated)
- Robust body design
- High flow capacity for better flow-rate to line size ratio
- Pressure sealed bonnet option
- Variety of cage trims designs to suit wide range of industrial applications
- Wide range of noise reduction and cavitation control options
- Quick change self aligning trim / seat design
- Top entry trim for easy inline assessment and maintenance
- Long service life and Operational reliability
- Interchangeable internal parts
HYDRAULIC TEST PRESSURE |
||
BODY |
30 Kg/cm2 (g) |
|
SEAT |
21 Kg/cm2 (g) |
|
AIR TEST |
||
SEAT |
7 Kg/cm2 (g) |
|
|
DESCRIPTION |
MATERIALS |
1 |
BODY |
SS 316 |
2 |
SLEEVE |
SS 316 |
3 |
BALL |
SS 316 |
4 |
SPINDLE |
SS 316 |
5 |
GLAND |
SS 316 |
6 |
GLAND PACKING |
PTFE |
7 |
SEAT RING |
PTFE |
8 |
BODY SEAL |
PTFE |
9 |
STEM SEAL |
PTFE |
10 |
LEVER |
SS 304 |
APPLICABLE STANDARDS |
FACE TO FACE - ANSI B 16.10 |
MFG. STD – BS 5351 |
TESTING STANDARDS -API 598 |
